2400-2500MHz 16dBi 120 Degree WiFi WLAN MIMO Sector Antenna
The TDP-2425-16 Sector Panel WiFi Antenna combines high gain with a wide 120° beam-width. It is a professional quality “cell site” antenna designed primarily for service providers in the 2.4GHz ISM band. Applications include IEEE 802.11b, 802.11g and 802.11n wireless LAN systems.

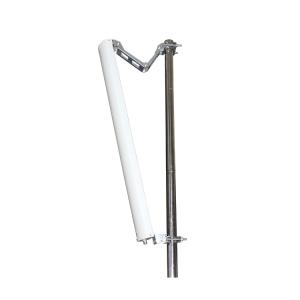

This antenna features a heavy-duty plastic radome for all-weather operation. The mounting system adjusts from 0 to 20 degrees down-tilt.
This WiFi antenna is an ideal choice for Wireless Internet Provider "cell" sites since the cell size can be easily determined by adjusting the down-tilt angle. Horizontal coverage is a full 120 degrees.
Features
- 120° beam-width
- Includes Mast Mounting Hardware
- Integral N-Female Connector
- 20° Down-Tilt Mounting Bracket
- All weather operation
Applications
- Bluetooth® & Public Wireless Hotspot
- IEEE 802.11b, 802.11g and 802.11n Wireless LAN Applications
- 2.4 GHz ISM Band
- WiFi & Wireless Video Systems
- Wireless Internet Provider "cell" sites
Electrical Specifications
| Frequency Range | 2400-2500 MHz |
| Gain (dBi) | 16 dBi |
| Horizontal Beamwidth | 120° |
| Vertical Beamwidth | 7.4° |
| VSWR | <1.5 |
| Polarization | V |
| Impedance | 50Ω |
Mechanical Specifications
| Connector | Customized |
| Dimensions | 958*174*79 mm |
| Weight (Kg) | 5.2 kg |
| Lightning Protection | Dc Ground |
| Rated Wind Speed | 126/ms |
| Mounting Type | Pole Mount |
| Suitable pole diameter | Ф30-80mm |
